Color
Natural
Orientation
Right-Hand
Product Name
Roasted Jazzmaster Neck, Block Inlays, 22 Medium Jumbo Frets, 9.5" Radius, Maple Modern C Shape
Series
Modified
Roasted Jazzmaster Neck, Block Inlays, 22 Medium Jumbo Frets, 9.5" Radius, Modern C Shape
Regular price
4.299,00 kr
Regular price
4.299,00 kr
4.299,00 kr
Sale price
Unit price
per
inc. moms*
Roasted Jazzmaster Neck, Block Inlays, 22 Medium Jumbo Frets, 9.5" Radius, Modern C Shape
Roasted Jazzmaster Neck, Block Inlays, 22 Medium Jumbo Frets, 9.5" Radius, Modern C Shape
Regular price
4.299,00 kr
Regular price
4.299,00 kr
4.299,00 kr
Sale price
Unit price
per
inc. moms*
Couldn't load pickup availability
Shipping & Returns
Free shipping on orders over 749 kr. Delivery Times: Standard 2-4 Days, Express 1-3 Days. Learn more
Return or exchange your purchase for any reason within 30 days of receipt. Learn more
Details
Summary
Overview

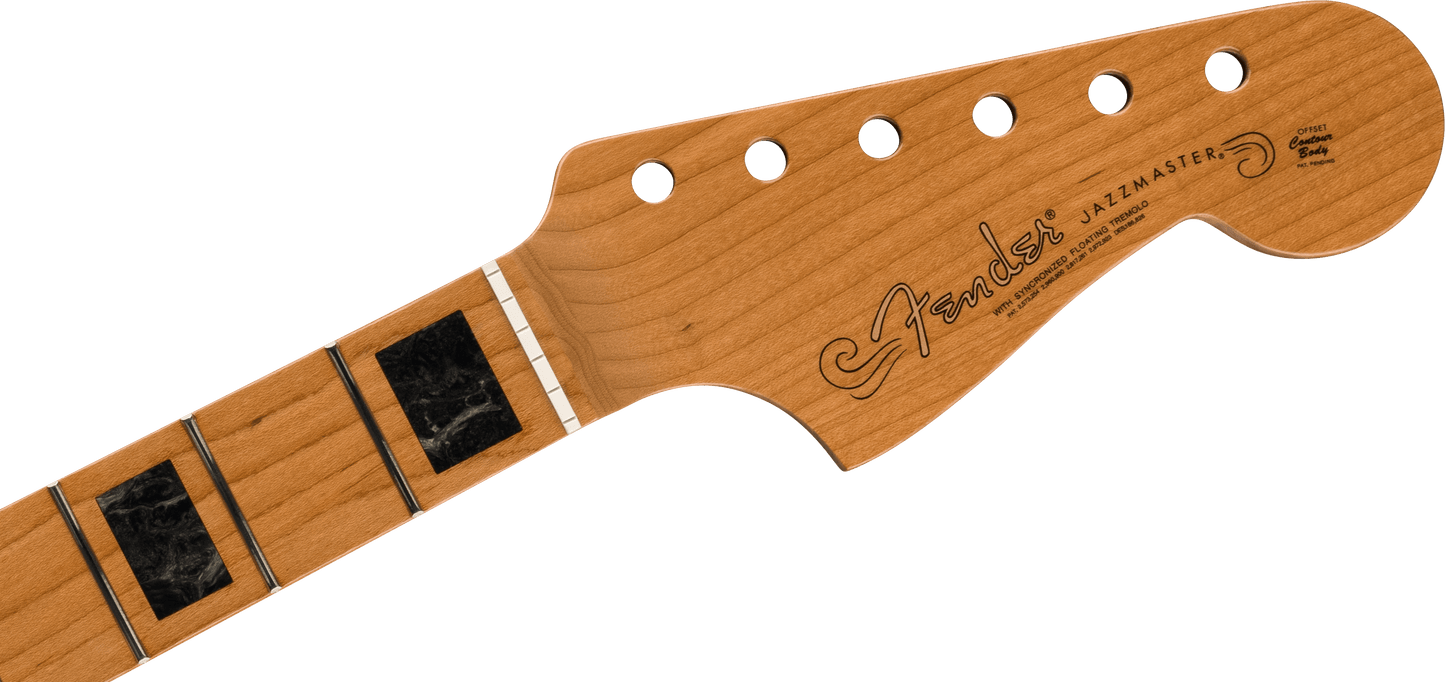

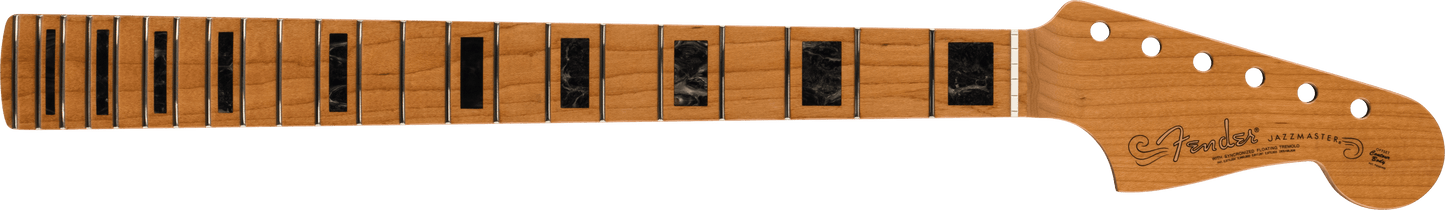

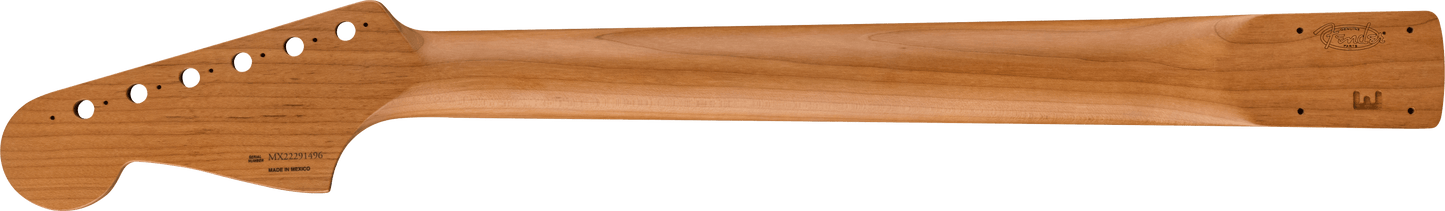

There's no denying the allure of a roasted maple neck. Resistant to humidity shifts and featuring a gorgeous, dark look, they have more sustain and add a unique note to the instrument's voice.This genuine Fender Jazzmaster neck is crafted at our Ensenada, Mexico manufacturing facility. Featuring striking pearloid block inlays, a Modern "C" neck profile and 9.5"-radius maple fingerboard with 22 medium jumbo frets for modern playing feel. The synthetic bone nut is pre-slotted with "pilot" grooves for accurate spacing when filing the final string slots.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- Roasted maple neck
- Modern "C"-shaped profile; 9.5"-radius maple or pau ferro fingerboard
- 22 medium jumbo frets; pre-slotted synthetic bone nut
- Gloss urethane finish on maple fingerboard and headstock face; satin finish on back of neck
- Vintage-style truss rod adjustment
General
Hardware
Tuner Mounting Config
Vintage-Style 2-Screw
Measurements
Fret Size
Medium Jumbo
Fret Wire Dimensions
0.103" (H) x 0.046" (W)
Headstock Thickness
.540” (13.71 mm)
Peg Hole Diameter
.358” (9.09 mm)
Scale Length
25.5" (648 mm)
Neck
Fingerboard Material
Roasted Maple
Fingerboard Radius
9.5" (241 mm)
Neck Binding
None
Neck Finish
Satin Urethane Finish on Back, Gloss Urethane Finish on Front
Neck Material
Roasted Maple
Neck Mounting
4-Bolt
Neck Shape
Modern "C"
Neck Thickness
1st Fret - .820" (20.82 mm), 12th Fret - .870" (22.09 mm)
Number of Frets
22
Nut Material
Synthetic Bone
Nut Width
1.685" (42.8 mm)
Position Inlays
Black Pearloid Blocks
Side Dots
Black
String Nut
Synthetic Bone
Truss Rod
Vintage-Style Heel Adjust
Truss Rod Nut
Vintage-Style Slotted
General
Color
Natural
Orientation
Right-Hand
Product Name

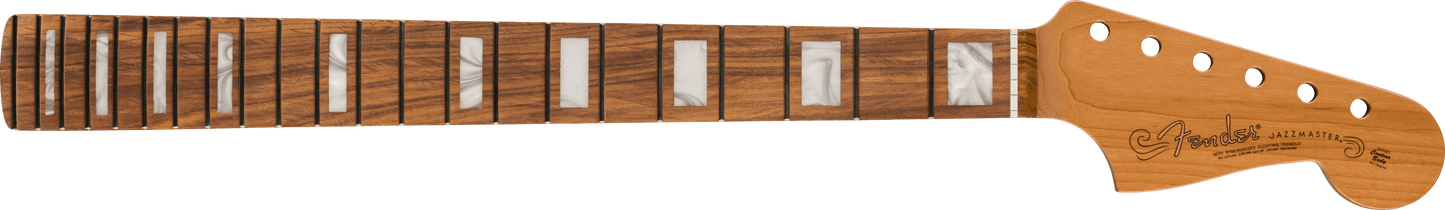

Roasted Jazzmaster Neck, Block Inlays, 22 Medium Jumbo Frets, 9.5" Radius, Pau Ferro Modern C Shape
Series
Modified
Hardware
Tuner Mounting Config
Vintage-Style 2-Screw
Measurements
Fret Size
Medium Jumbo
Fret Wire Dimensions
0.103" (H) x 0.046" (W)
Headstock Thickness
.540” (13.71 mm)
Peg Hole Diameter
.358” (9.09 mm)
Scale Length
25.5" (648 mm)
Neck
Fingerboard Material
Pau Ferro
Fingerboard Radius
9.5" (241 mm)
Neck Binding
None
Neck Finish
Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
Neck Material
Roasted Maple
Neck Mounting
4-Bolt
Neck Shape
Modern "C"
Neck Thickness
1st Fret - .820" (20.82 mm), 12th Fret - .870" (22.09 mm)
Number of Frets
22
Nut Material
Synthetic Bone
Nut Width
1.685" (42.8 mm)
Position Inlays
White Pearloid Block
Side Dots
White
String Nut
Synthetic Bone
Truss Rod
Vintage-Style Heel Adjust
Truss Rod Nut
Vintage-Style Slotted
